Every crane on a jobsite relies on one of two boom designs: a hydraulic telescopic boom that extends in nested sections, or a pinned steel lattice boom built up from truss sections before the lift. The telescopic boom vs lattice boom crane decision affects how fast a crane sets up, how far it reaches, and how much it can lift at that reach. Knowing which crane classes carry each boom type is the first step toward specifying the right rental for your project.
Key Takeaways
- Boom construction, not just crane class, drives the decision: A telescopic boom extends and retracts hydraulically in nested sections. A lattice boom is a fixed-length structure of pinned steel truss sections assembled on site and changed only by adding or removing sections.
- Telescopic booms set up faster: Manufacturer data shows telescopic mobile cranes have setup times significantly shorter than lattice boom cranes because they self-erect with a smaller footprint and lower counterweight requirements.
- Lattice booms carry the higher capacity ceiling: The most powerful conventional lattice crawler crane lifts up to 3,000 tons (3,300 USt), compared with 1,200 tons (1,500 USt) for the most powerful telescopic mobile crane on the market.
- Crawler cranes come in both boom types: Maxim’s crawler fleet includes lattice models like the Link-Belt LS-138 alongside telescopic models like the Tadano GTC series, so “crawler” alone does not tell you the boom type.
- All-terrain, rough terrain, truck-mounted, and boom truck cranes are telescopic: Lattice construction is reserved for crawler cranes and, in the broader market, lattice boom truck cranes, a class outside Maxim’s fleet.
- There is no universal “better” boom type: Short relocations and tight setup windows favor telescopic booms. Long-duration, maximum-capacity lifts favor lattice booms.
What’s the Difference Between a Telescopic Boom and a Lattice Boom Crane?
A telescopic boom is a hydraulic, multi-section boom that slides in and out like a nested tube system, letting the crane change length during a lift. A lattice boom is an open steel truss made of pinned sections, assembled to a fixed length before the lift begins and adjusted only by physically adding or removing sections.
Federal regulation reflects this same split. The scope of 29 CFR 1926 Subpart CC defines a mobile crane as a lifting device incorporating either a latticed boom or a hydraulic telescopic boom, and separately calls out crawler cranes and mobile crane types (wheel-mounted, rough-terrain, all-terrain, commercial truck-mounted, and boom truck cranes) within its scope.
The practical difference shows up on the jobsite: a telescopic boom’s length is a real-time adjustment the operator makes from the cab. A lattice boom’s length is a rigging decision made before the crane ever picks a load, since changing it requires manually adding or removing boom sections.
Which Crane Classes Use a Telescopic Boom, and Which Use a Lattice Boom?
Most of the crane classes a rental buyer specifies run telescopic booms. Lattice construction is limited to crawler cranes and lattice boom truck cranes, and within Maxim’s fleet, crawler is the one class offered in both boom types.
| Crane Class | Boom Type | Self-Transport on Roads | Typical Role |
|---|---|---|---|
| All-terrain | Telescopic | Yes | Road-going lifts across mixed sites; fast general work. |
| Rough terrain | Telescopic | No (trailered) | Off-road and confined jobsites; pick and carry. |
| Hydraulic truck crane | Telescopic | Yes | Full-capacity lifting on a dedicated crane carrier, with highway travel between sites. |
| Boom truck crane | Telescopic | Yes | Lighter-capacity, fast-mobilizing lifts from a standard truck chassis. |
| Crawler | Lattice or telescopic | No (transported in sections or on trailer) | Heavy, long-duration, on-site lifts on tracks. |
| Lattice boom truck crane | Lattice | Yes (with restrictions) | Mobile heavy lift combining road travel and lattice capacity. Not part of Maxim’s fleet. |
In practice, that means all-terrain cranes, rough terrain cranes, hydraulic truck cranes, and boom trucks are all telescopic machines built for mobility. If your project is choosing between two of those classes, the boom type is already the same and the real decision is carrier and terrain capability, the comparison covered in our guide to rough terrain crane vs. all-terrain crane selection.
The exception is the crawler crane category. Maxim’s crawler fleet includes both lattice boom crawlers and telescopic boom crawlers, so specifying a crawler doesn’t settle the boom question on its own. The rest of this post focuses on the two boom types directly, since that comparison applies most often within the crawler class and, in restricted mobile form, to lattice boom truck cranes, a class Maxim does not operate.
Where Telescopic and Lattice Booms Fit the Job
Telescopic booms fit jobs built around speed and movement. Lattice booms fit jobs built around sustained, maximum-capacity lifting. The two profiles rarely overlap.
Telescopic booms typically handle:
- Projects with multiple picks across a spread-out site, where the crane relocates without a full teardown.
- Short-duration jobs where mobilization time is a meaningful share of the schedule.
- Sites that require road travel between locations, since all-terrain and boom truck cranes can self-transport.
Lattice booms typically handle:

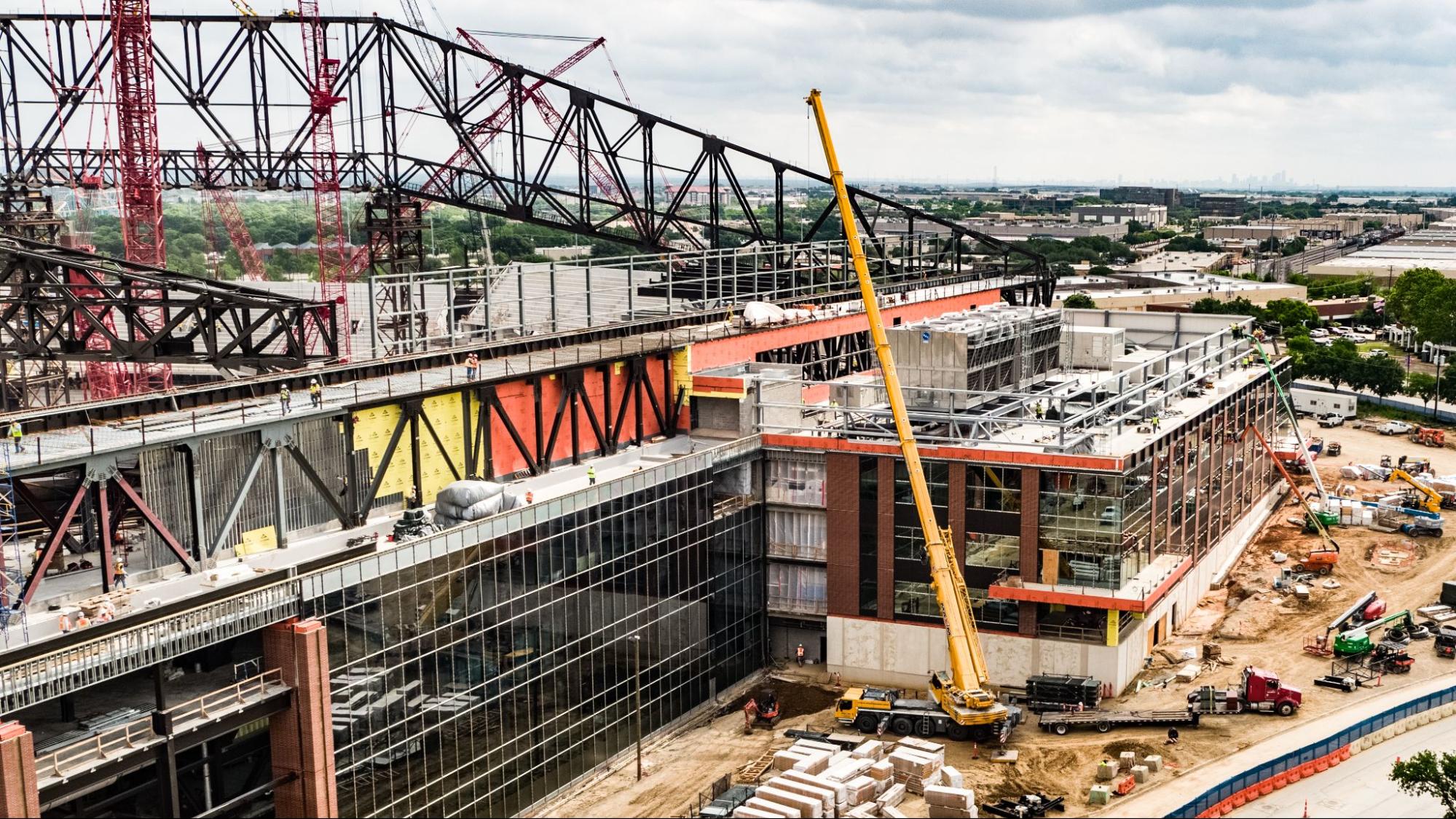

- Long-duration, stationary heavy lifts, such as plant turnarounds and steel erection on stadiums and high-rises.
- Wind farm turbine work, where nacelle and rotor placement can exceed all-terrain crane capacity limits, pushing the lift to a crawler.
- Projects where the crane stays rigged in one configuration for an extended run and the assembly cost is offset by the duration of the job.
Our guide to how crawler cranes handle heavy lifting goes deeper on the applications where lattice-equipped crawlers are the standard choice.
Telescopic vs. Lattice Boom: Capacity, Reach, and Setup Time Compared
At the flagship end of each category, the two boom types pull in different directions. Telescopic booms lead on speed and self-sufficiency. Lattice booms lead on maximum capacity and boom length.
| Factor | Points Toward Telescopic | Points Toward Lattice |
|---|---|---|
| Setup and mobilization speed | Faster; self-erects with a small footprint | Slower; assembled from pinned sections |
| Maximum capacity and reach | High, to about 1,200 tons (1,500 USt) at the flagship | Highest, to about 3,000 tons (3,300 USt) at the flagship |
| Adjust length during the lift | Yes, hydraulically on the fly | No, fixed once pinned |
| Project duration and moves | Short jobs and frequent relocations | Long-duration, stationary heavy work |
| Assembly space on site | Minimal; erects itself | Needs a level, firm area large enough to lay out boom sections |
| Wind exposure | Solid box boom presents more surface | Open truss presents less surface area to wind |
Exact capacity at a given radius depends on the specific make, model, and configuration in use. Maxim’s engineering team checks that detail against manufacturer load charts for the machine assigned to your lift, rather than a general boom-type rule of thumb.
Site Constraints That Push the Choice: Access, Assembly Space, and Wind Exposure
Boom type interacts directly with site conditions. A lattice boom needs room to assemble before it ever picks a load, and a telescopic boom needs a path to drive or trailer in on.
- Assembly space: A lattice crane needs a level, firm area large enough to lay out the boom before erection. A telescopic crane self-erects in a comparatively small footprint.
- Site access and transport: All-terrain and boom truck cranes can travel public roads to the site. Crawler cranes, whether lattice or telescopic, typically arrive disassembled on trailers and are built up on site.
- Ground support: Both boom types still depend on how the crane transfers load to the ground, through tracks or through outriggers. Our breakdown of ground bearing pressure and crane site readiness covers how that factor is evaluated separately from boom type.
- Wind exposure: A lattice boom’s open-truss design presents less surface area to the wind than a telescopic boom’s solid box section, which can widen the operational window on exposed, high-altitude sites, a factor that feeds into lift planning.
How Boom Type Shows Up in a Rental Quote
Boom type doesn’t set a price on its own, but it changes the variables that go into one. Setup and mobilization time is the clearest example: a telescopic crane that self-erects typically needs less site time and crew support before the first pick than a lattice crane assembled from pinned sections.
Project duration works the other way. On a job measured in weeks or months, the assembly time for a lattice boom is a small share of the total schedule, and the higher capacity it unlocks can mean fewer crane moves overall. On a job measured in days, a telescopic crane’s faster mobilization often matters more than the extra capacity a lattice boom would provide.
Because these tradeoffs are project-specific, Maxim doesn’t quote boom type in isolation. A rental quote accounts for the crane’s capacity at your required radius, the site’s access and ground conditions, and how long the machine needs to stay mobilized, factors an engineering team evaluates together rather than one at a time.
How Maxim’s Engineering Team Helps You Specify the Right Boom
Choosing between a telescopic and a lattice boom is rarely a standalone decision. It’s one input into a broader equipment selection process that also weighs load weight, reach, terrain, and site accessibility. Maxim’s engineering services team evaluates those factors together, using capacities, accessibility, and availability to match a crane, and a boom type, to the lift.

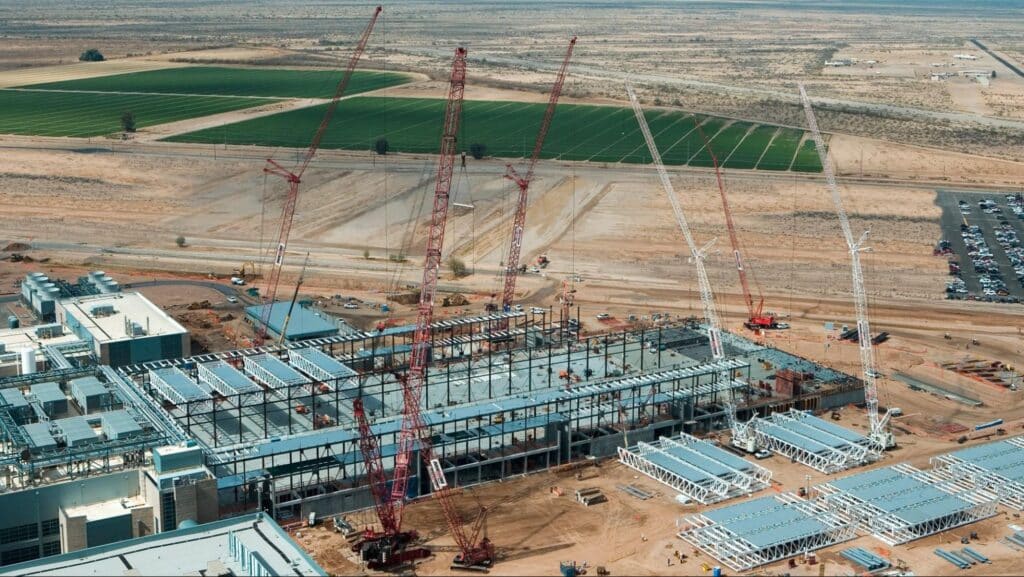

Maxim’s Intel Fab 42 case study shows what that looks like on a large, multi-crane project:
- A $5.0 billion semiconductor fabrication build in Chandler, Arizona.
- 11 conventional crawler cranes paired with 10 all-terrain and hydraulic truck cranes and 11 rough terrain cranes, combining lattice-equipped crawlers for the heaviest structural picks with telescopic machines for faster, more mobile work.
- More than 91,000 man hours of crane work completed without a major safety incident.
Turner Construction, a national partner on stadium and heavy commercial projects, has worked with Maxim for decades. As Turner’s Dave Bareswilt put it, the value comes down to a team that will “make sure we plan ahead” before equipment ever reaches the site, the same planning that goes into matching boom type to a lift. If your project spans multiple crane classes or boom types, a rental quote starts that same evaluation for your specific site and schedule.
Frequently Asked Questions About Telescopic and Lattice Boom Cranes
Which Is Better, a Telescopic or a Lattice Boom Crane?
Neither boom type is universally better. Telescopic booms are faster to mobilize and better suited to short jobs or frequent relocations. Lattice booms reach higher maximum capacities and are better suited to long-duration, stationary heavy lifts. The right choice depends on your project’s duration, required capacity, and site access, not a fixed ranking between the two designs.
Are Crawler Cranes Lattice or Telescopic?
Both. Crawler cranes are the one crane class in Maxim’s fleet available with either boom type. Maxim’s crawler fleet includes lattice boom crawlers built for maximum capacity and telescopic boom crawlers built for faster setup, so the crane class alone doesn’t determine which boom it carries.
How Far Can a Telescopic Boom Reach Compared to a Lattice Boom?
At the flagship end of each category, the most powerful telescopic mobile crane on the market extends to 100 meters (about 328 feet), while the most powerful conventional lattice crawler crane reaches a main boom length of up to 144 meters (about 472 feet). Reach for any specific machine depends on its model and configuration.
Can a Telescopic Crane Lift as Much as a Lattice Crane?
At the high end, no. The most powerful telescopic mobile crane lifts up to 1,200 tons (1,500 USt), while the most powerful conventional lattice crawler crane lifts up to 3,000 tons (3,300 USt). Most rental projects don’t require flagship capacity, so mid-range machines in both boom types often overlap in what they can lift at a given radius.
Ready to Specify the Right Crane for Your Lift?
Boom type is one factor in a bigger equipment decision, alongside load weight, reach, terrain, and site access. Maxim Crane’s engineering team can help you weigh those factors for your specific project. Request a quote to start the conversation about the right crane, and the right boom, for your job.
